Vise and Tooling Columns for HMC's

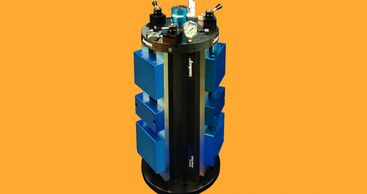

3 Sided Hydraulic Vise
This Hydraulic 3 Sided Vise Column allows the consistant clamping pressure of parts while using high pressure.
Horizontal Machines
HMC's offer a big advantage over a 3 Axis VMC since you can machine 3 faces of the part when you index the column rather than the single top face on your VMC.
3 Sided QLS Tooling Column
Drop and Lock Pallets are mounted onto the QLS Grid allowing the change over of Top Tooling in Seconds.

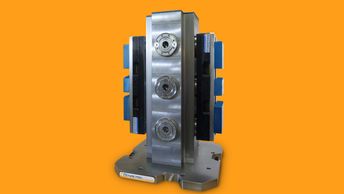

4 Sided Zero Point Column
Zero Point is the most accurate and fastest method of Quick Change this column has 2) vises, but can hold 4.

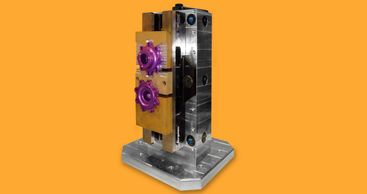

Ball Lock Tooling Column
Ball Lock Tooling Columns are manufactured by Jergens to cover many different configurations has a Vise added.

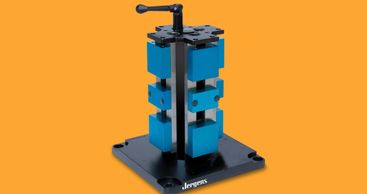

4 Sided 6" Vise Column
Jergens manufactures multiple sided Vise Columns this unit can hold 8 parts and machine 3 sides per machine cycle.

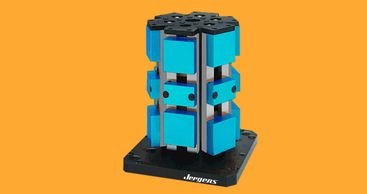

6 Sided 6" Vise Column
Jergens manufactures 6) sided Vise Columns this unit can hold 12 parts and machine 3 sides per machine cycle.

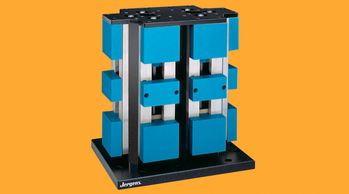

12 & 16 Station Vise Colum
Jergens manufactures multiple sided Vise Columns this unit can hold 12 parts and machine 3 sides per machine cycle.

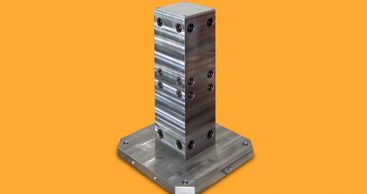

Square 10" Tooling Column
Let us quote you on your next Tooling Column application not only are the faces Quick Change, but the base is also.

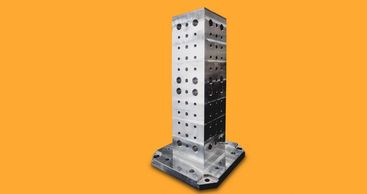

Combination Tooling Column
This Tooling Column has both BAll Lock and QLS Bushing for Fixter Pro

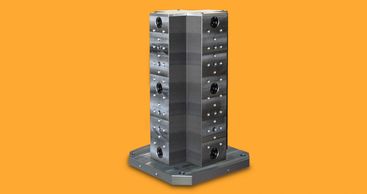

Cross Tooling Column
Cross Tooling Columns are better for machine spindle clearance this one has both Ball Lock and QLS grids.

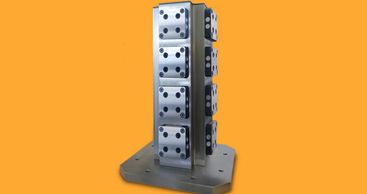

Cross Tooling With Pallet
400mm Cross Tooling Column with QLS Bushings and Drop & Lock Pallets for 30 second Quick Change.
