Cross Tooling Columns with ball lock & QLS

Cross Tooling Columns with Ball Lock & QLS Grid

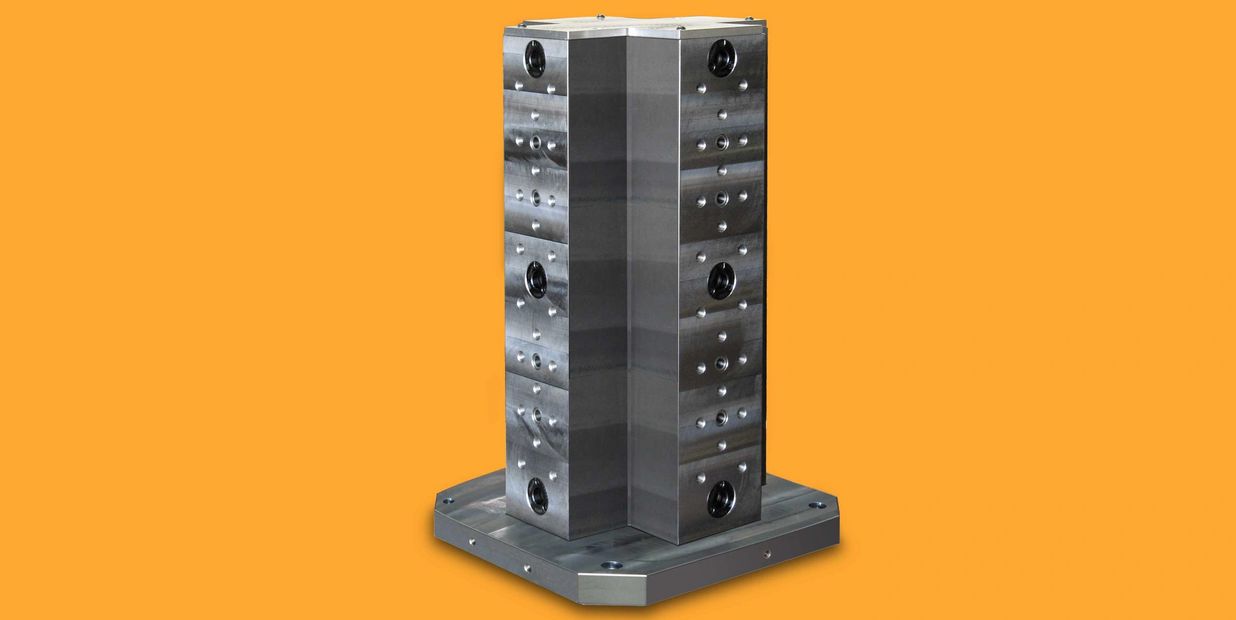

Cross Columns are used when you don't want to spend the extra money on long reach tooling on a Sq.

Cross Tooling Columns are designed so you don't need to spend extra money on extended reach tooling.  You do loose some column face, but you gain the ability to get closer to the part allowing 3 sided access, and with a Jergens Pallet mounted on the column it will allow 5 face machining with a 90 second index.

Our Sales Engineers Can Help!

Let Jergens engineering staff help with your workholding needs call 1.800.Jergens

Call and ask one of our Engineered Sales Support staff to review your Up Time solution to fixture your machine.

Save Without Larger Machines

Quick change fixtures will save you money by reducing your time spent on set up.

400mm machine can run the same size parts on a 3 Sided Column as a 4 Sided Column on a 500mm HMC.
