Inch Drop & Lock Pallet

Jergens Quick Change Inch Drop & Lock Pallet

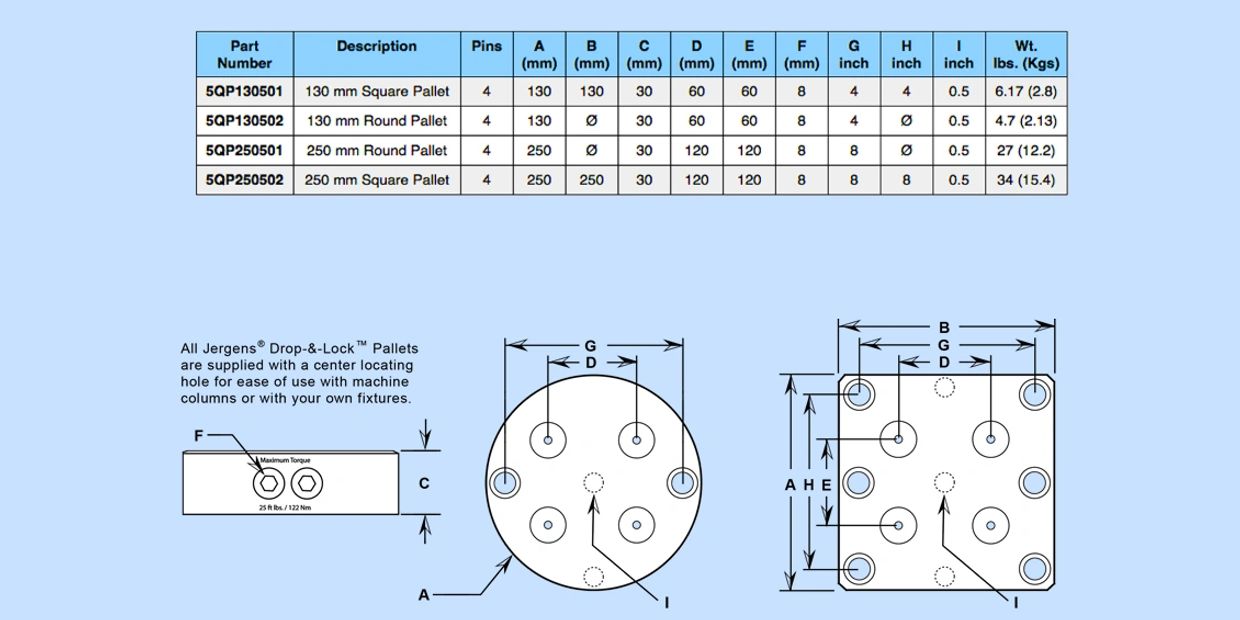

Jergens quick change Inch Drop & Lock Pallet

Jergens has two patterns for the quick change Drop & Lock Pallet one for metric at 100mm and the second identical Pallet except for the 4 Inch mounting grid allowing for interchangeable Top Tooling.

How to order a T-Column with a inch QLS Grid

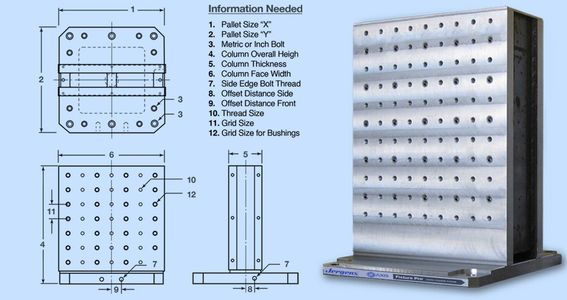

Jergens Fixture Pro T-Column with QLS grid

Fixture Pro T-Column with QLS Grid and partial bushings configuration for mounting quick change Jergens Drop & Lock Pallets and Top Tooling on.

QLS Fixture Pro Grid


There are many different grid options for mounting Fixture Pro components starting with just the tapped hole and no locator bushings, all bushings or any combination of options depending on cost.
