Ball Lock Tooling column

10" Square Tooling Column

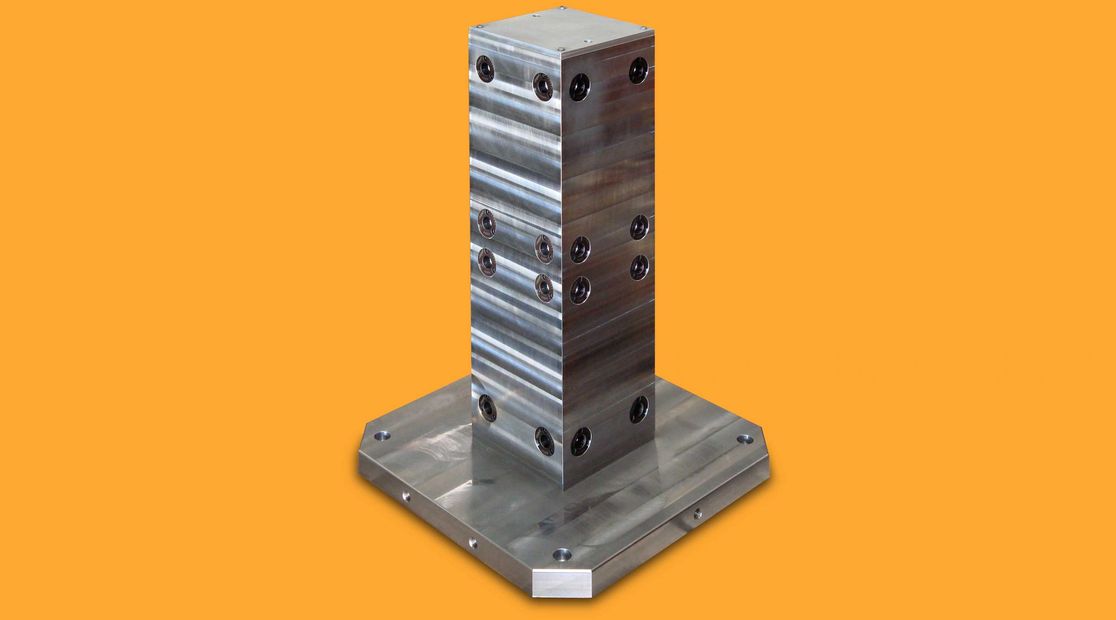

Ball Lock on a tooling column gives you the ability to make quick change overs of your fixture.

This 400mm base has a 10" square tooling column with 2) sets of Ball Lock mounted in each face.  Allowing for 8) smaller fixture plates or 4) larger fixture plates depending on the size of your work piece.  This column is equipped with Ball Lock on the face of the column, but mounts to your table with side edge location or using a center locator for either English or metric mounting holes

Our Sales Engineers Can Help!

Jergens has engineers waiting to assist you with your workholding fixture.

Call and ask one of our Engineered Sales Support staff to review your Up Time solution to fixture your machine.

Save Without Larger Machines

Helping you save money on your workholding fixture is Jergens Inc. business.

400mm machine can run the same size parts on a 3 Sided Column as a 4 Sided Column on a 500mm HMC
