mounting holes are the only difference

Moving a vise from a metric Pallet to an inch Pallet is no problem

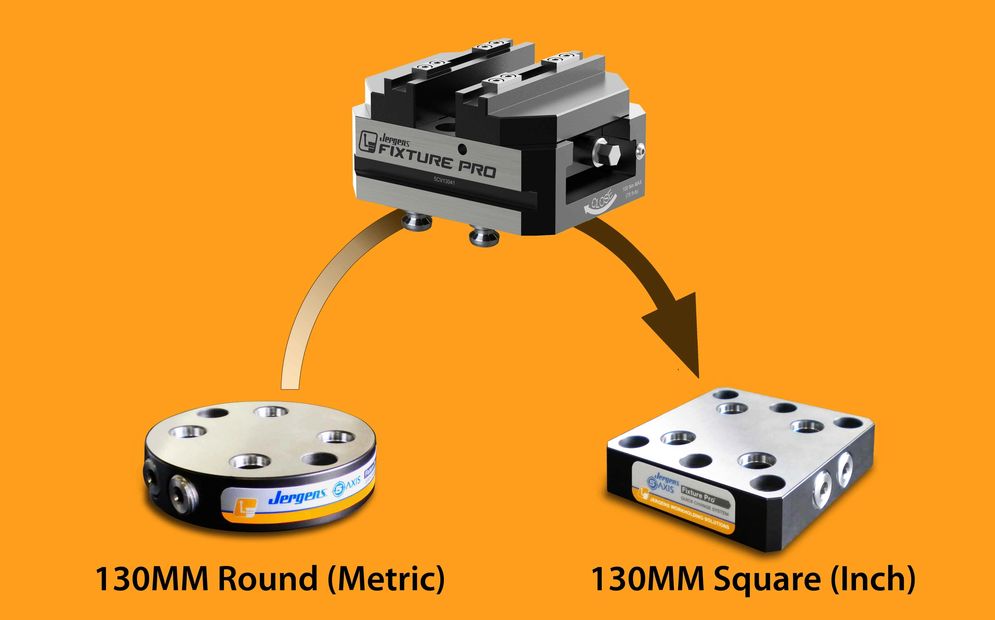

Change Top Tooling from Metric to Inch Jergens quick change Drop & Lock Pallets

If you have inch and metric Base Element in your shop you can have the interchangeability from a vertical machining center and move one to the other with your Top Tooling.  You can move a Vise from a metric Pallet on you subplate with bushings to your horizontal tombstone with an inch grid on it.

Quick Change Top Tooling

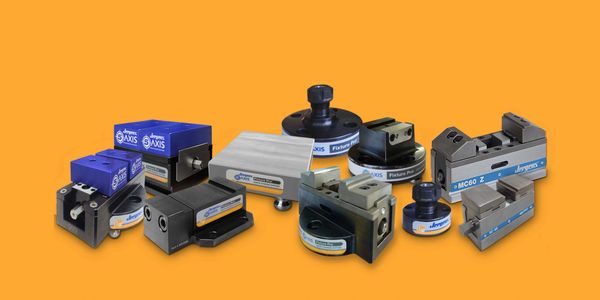

Top Tooling for 3, 4 and 5 Axis machines

Jergens manufactures many different Top Tooling items like Self Centering Vises, ER Collets, Dovetail Vises and Machinable Blanks for quick fixture designs.

Drop & Lock or Quick-Loc

Jergens Pallets give you the versatility of 60-120mm Pull Studs or the popular 52-96mm spacing

Jergens offers two different Pallet options their original Drop & Lock with 60-120mm spacing on the Pull Stud distance or their new Quick-Loc Pallets with the popular 52-96mm spacing.
