Inch / Metric Drop & Lock Pallet

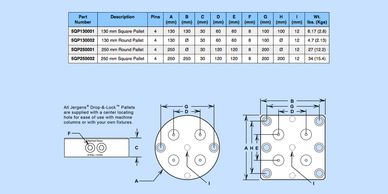

Jergens dimensional data for the Metric quick change Drop & Lock Pallet

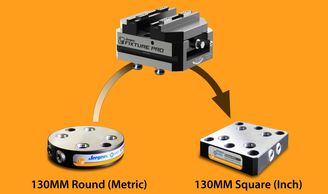

Jergens dimensional data for the quick change Drop & Lock Pallet allow you to change in seconds the Top Tooling from a metric to an inch Pallet and repeat within .0003".

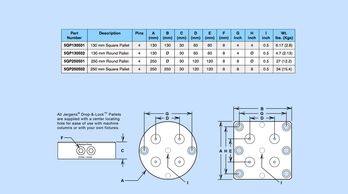

Jergens dimensional data for Inch quick change Drop & Lock Pallet

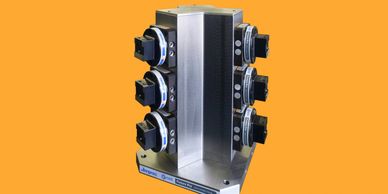

This 3 sided Tooling Column has 9) Drop & Lock  Pallets and 9) Dovetail Vises on it and when the first 3) faces of the part are machined the Dovetail and part can be indexed 90º for the other 2) faces to be machined.

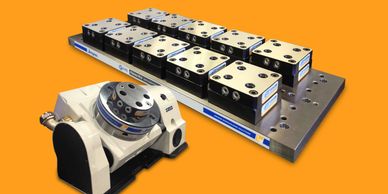

Ideal for machining when you need quick change and high repeat ability especially when you want a simple way to move your parts from a vertical machining center to a horizontal or rotary table.

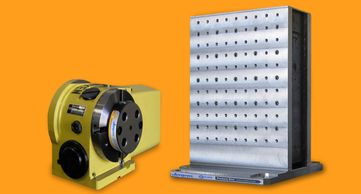

Convert you Tooling Column into a quick change asset after you mount one of our Drop & Lock Pallets giving you the ability to machine 5) sides of your part with out changing fixtures.
